SPECIFICATIONS

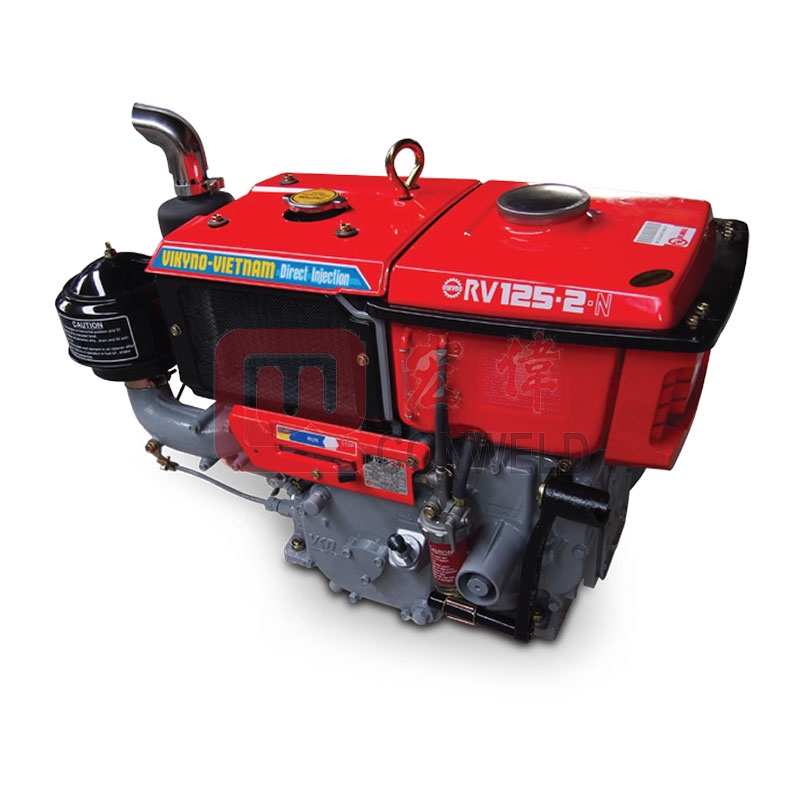

MODEL | RV125-2 |
Type | Water-cooled 4-stroke horizontal diesel engine |
Bore x Stroke (mm) | 94 x 90 |
Displacement (cm³) | 624 |
Continuous output (HP/r.p.m) Maximum output |
10.52200 12.5/2400 |
Maximum torque (kgm/rpm) | 4.04/1800 |
Compression ratio | 18 |
Fuel | Light diesel oil |
Fuel tank capacity (l) | 9.5 |
Specific fuel consumption (g/HP/hr) | 185 |
Nozzle opening pressure (kg/cm²) | 220 |
Lubricating oil | SAE 30, 20, 10W-30 |
Lubricating oil system (l) | 2.8 |
Combustion system | Direct injection |
Starting system | Handle staring |
Lamp | 6V-25W |
Cooling system | Radiator |
Cooling water capacity (l) | 2.1 |
Weight (kg) | 105 |
Dimensions:- Length – Width – Height (mm) | 714 – 370 – 472 |
