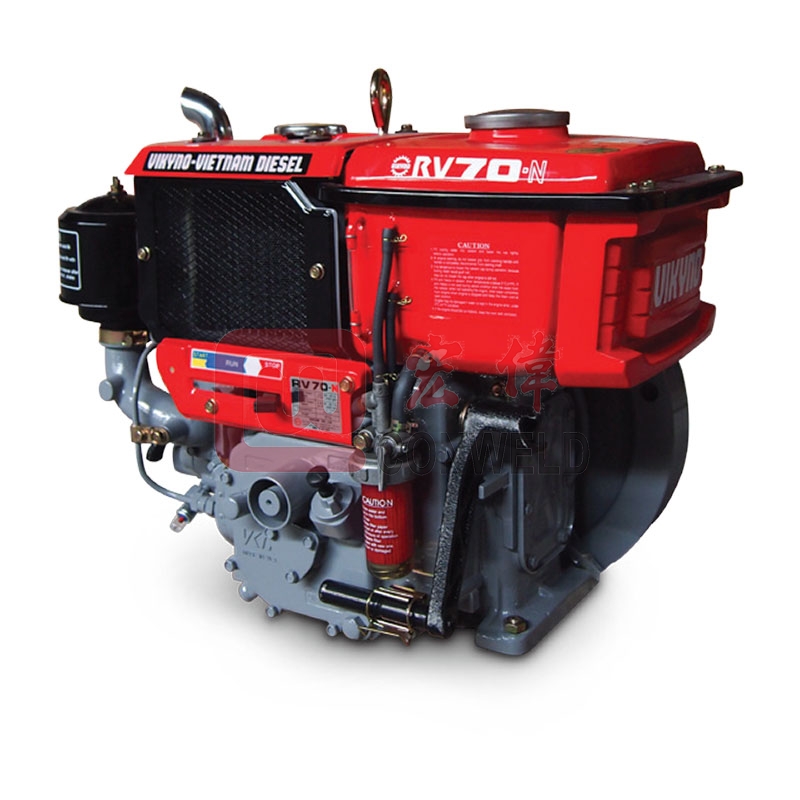

| MODEL | RV70N |
| Type | Water-cooled 4-stroke horizontal diesel engine |
| Bore x Stroke (mm) | 80 x 75 |
| Displacement (cm³) | 376 |
| Continuous output (HP/r.p.m) Maximum output |
6/2200 7/2400 |
| Maximum torque (kgm/rpm) | 2.26/1800 |
| Compression ratio | 24 |
| Fuel | Light diesel oil |
| Fuel tank capacity (l) | 7.5 |
| Specific fuel consumption (g/HP/hr) | 203 |
| Nozzle opening pressure (kg/cm²) | 140 |
| Lubricating oil | SAE 30, 20, 10W-30 |
| Lubricating oil system (l) | 2 |
| Combustion system | Indirect injection |
| Starting system | Handle staring |
| Lamp | 6V-25W |
| Cooling system | None |
| Cooling water capacity (l) | 1.3 |
| Weight (kg) | 68 |
| Dimensions:- Length – Width – Height (mm) | 619 – 322.5 – 435 |
