| Diesel Engine GFF |
RD140N |
| Type |
Single, Water Cooling 4-Stroke, Horizontal Diesel Engine |
| Combustion System |
Direct Injection |
| Bore x Stroke (mm) |
98 x 98 |
| Displacement (cc) |
739 |
| Compression Ratio |
18 |
| Rated Output (kW(Ps) / rpm) |
9.2 (12.5) / 2400 |
| Max Output (kW(Ps) / rpm) |
10.3 (14.0) / 2400 |
| Fuel Consumption (g/kW.h) |
242.5 |
| Cooling Water Capacity (L) |
2.3 |
| Fuel Tank Capacity (L) |
10 |
| Lub Oil Capacity (L) |
3 |
| Cooling System |
Condenser |
| Direction of Fly Wheel Rotation |
Counter Clockwise |
| Lubricating System |
Trochoid Pump Splash Lubrication |
| Starting Method |
Handle Starting |
| Injection Pressure (Mpa) |
22.5 ± 0.5 |
| Advance Angle of Fuel Injection (°) |
20° ± 1° |
| Valve Cold Clearance (mm) |
0.2 ± 0.05 |
| Dimension (L x W x H) (mm) |
825 x 360 x 488 |
| Weight (kg) |
115 |

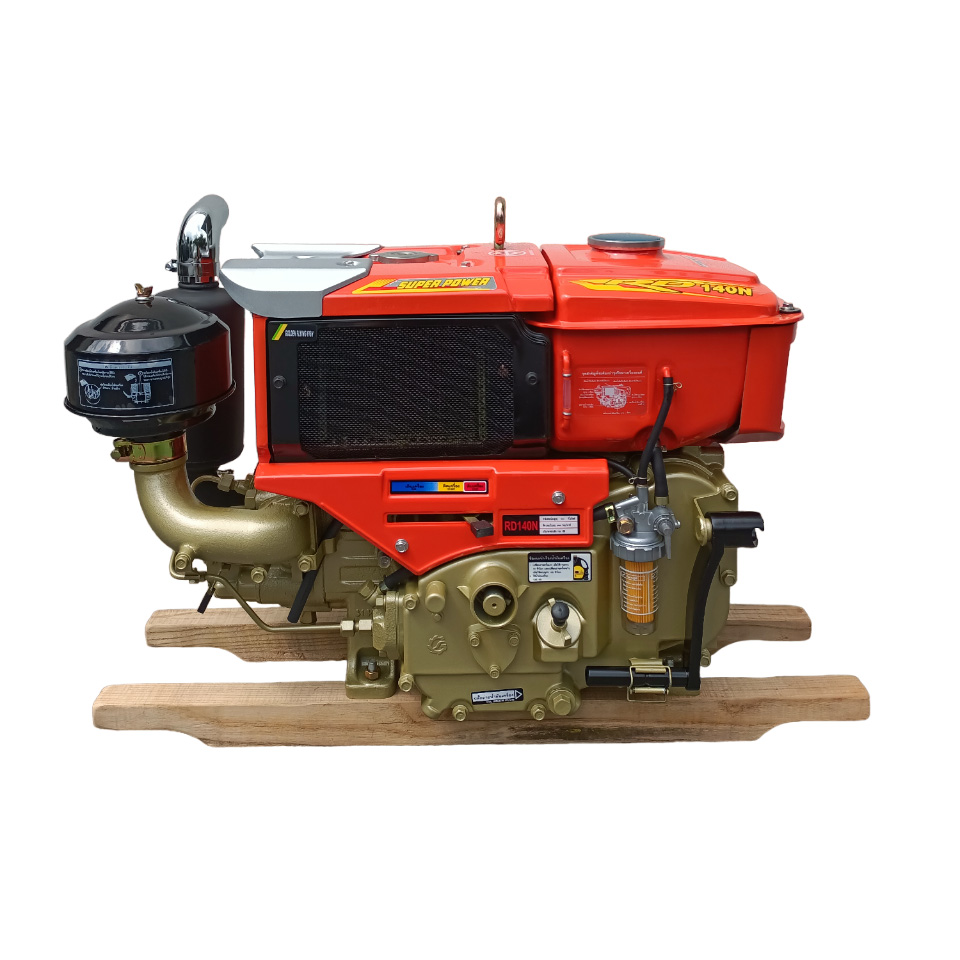

RD140N
