| Model | Dimensions (mm) H x W x L |
Weight (kg) | Plate Size (mm) | Jumping Stroke (mm) | Impact Force (kN) | Impact Number/Minute | Fuel Tank Capaciity (ℓ) | Power Source | |
| MTX-70 | 1027x350x788 | 75 | W1: 285 L1: 340 |
50-80 | 14.9 | 644-695 | 2.5 | Subaru ER12 gasoline Max. output 2.6kW(3.5PS) 4 stroke petrol (gasoline) |
|
| MT-76D | 1010x410x740 | 82 | W1: 285 L1: 340 |
50-80 | 15.7 | 656-698 | 3.3 |
Yanmar L48N |

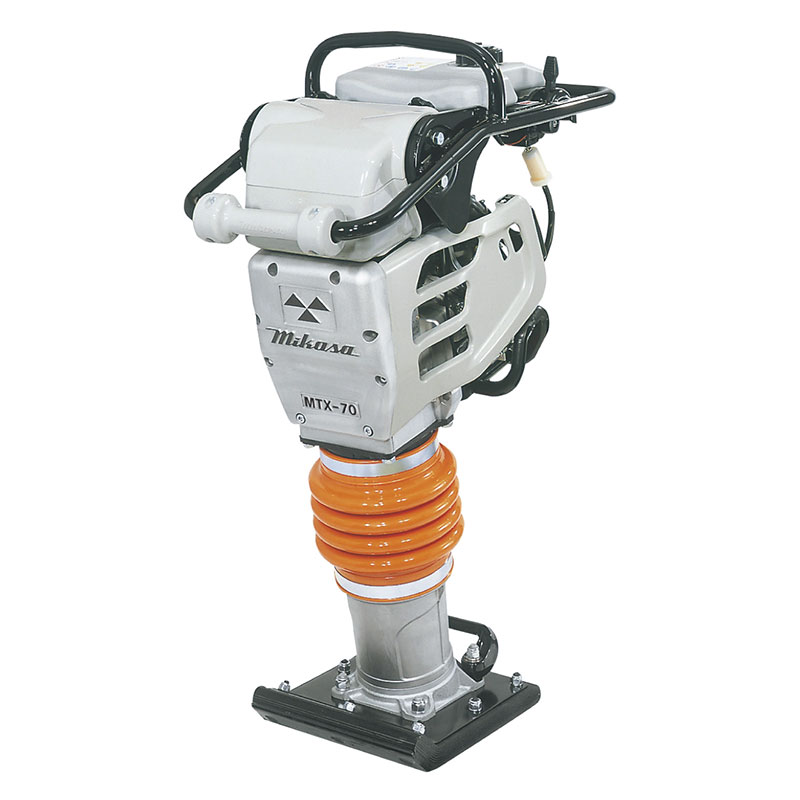

MTX-70

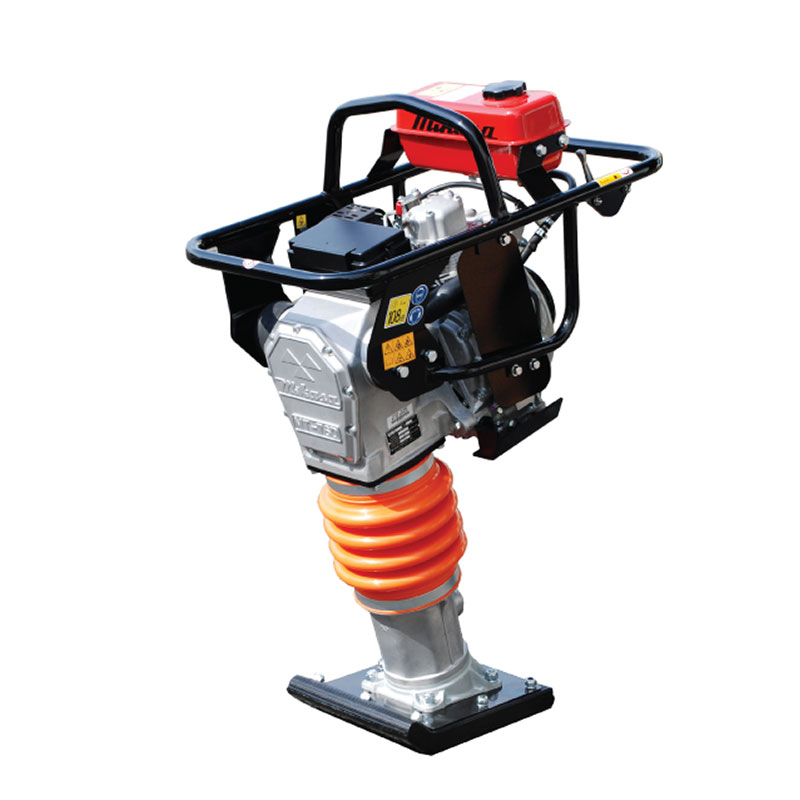

MT-76D
Tamping Rammer

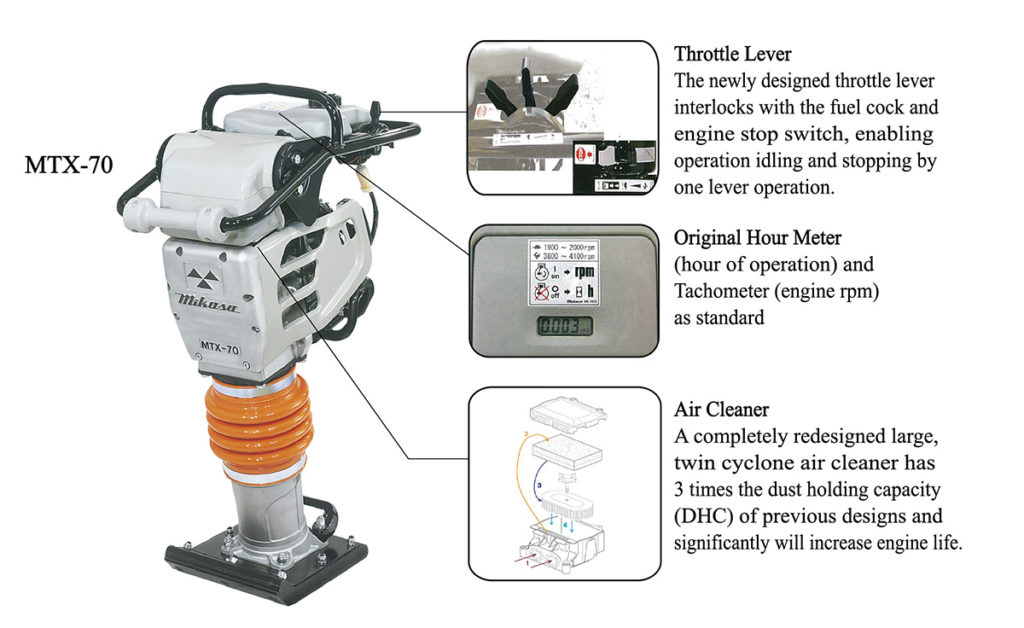

- The newly designed throttle lever interlocks with the fuel cock and engine stop switch, enabling operation idling and stopping by one lever operation.
- Original hour meter and Tachometer (engine rpm) as standard
- A completely redesigned large, twin cyclone air cleaner has 3 times the dust holding capacity (DHC) of previous designs and significantly will increase engine life.
More Information
About brand
MIKASA is world leading manufacturer producing light-sized Compaction Equipment for the construction industry and other applications. Based in Tokyo, Japan, the company has assumed a dominant position over the past 40 years in its export business which is helping Mikasa products to take prominent position in USA, Europe, Asia and other countries. In Malaysia, Conweld is the Official Agent and we have the agreement to market & distribute for Mikasa’s products lines.
