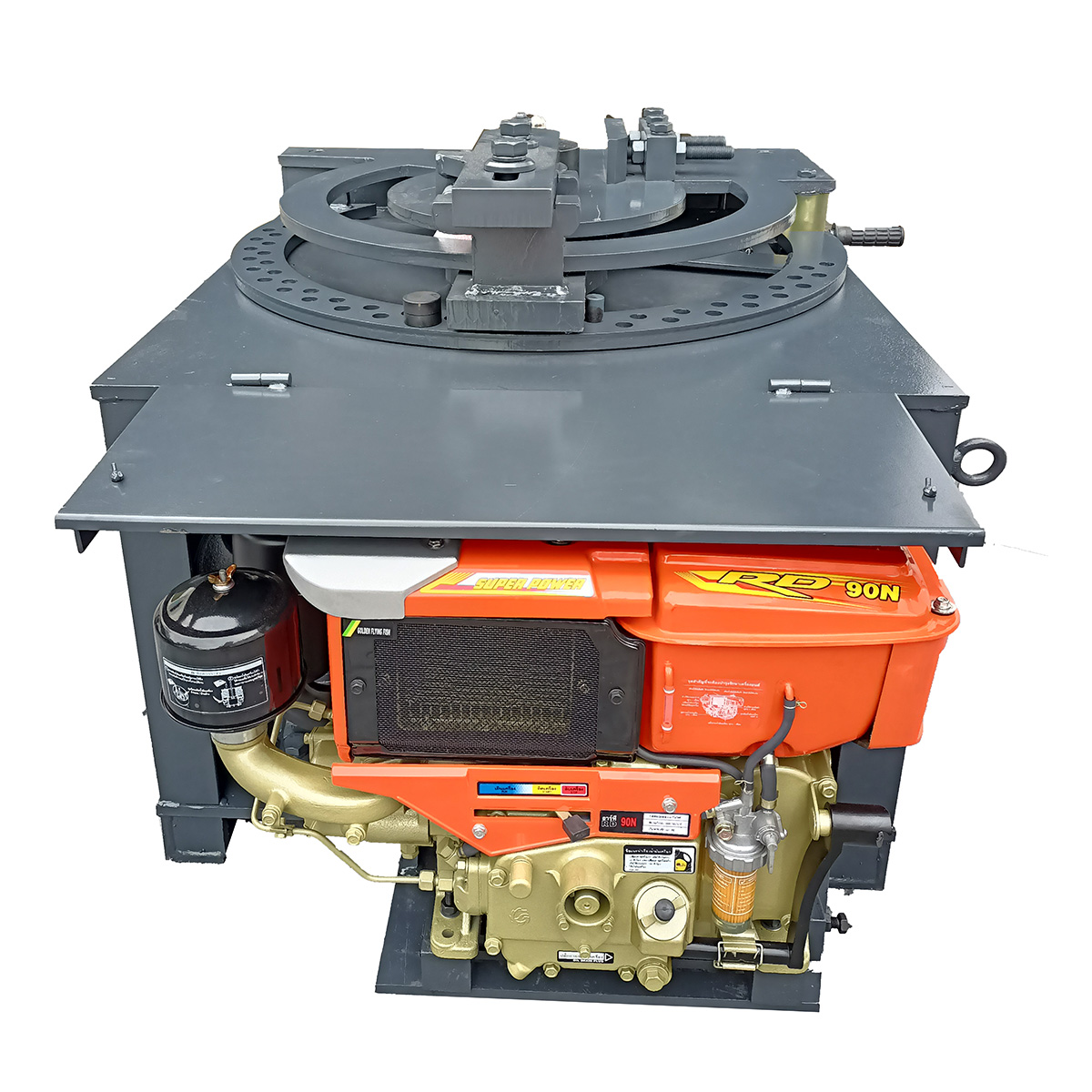

FBB32 C/W RV70
FBB42 C/W AM140

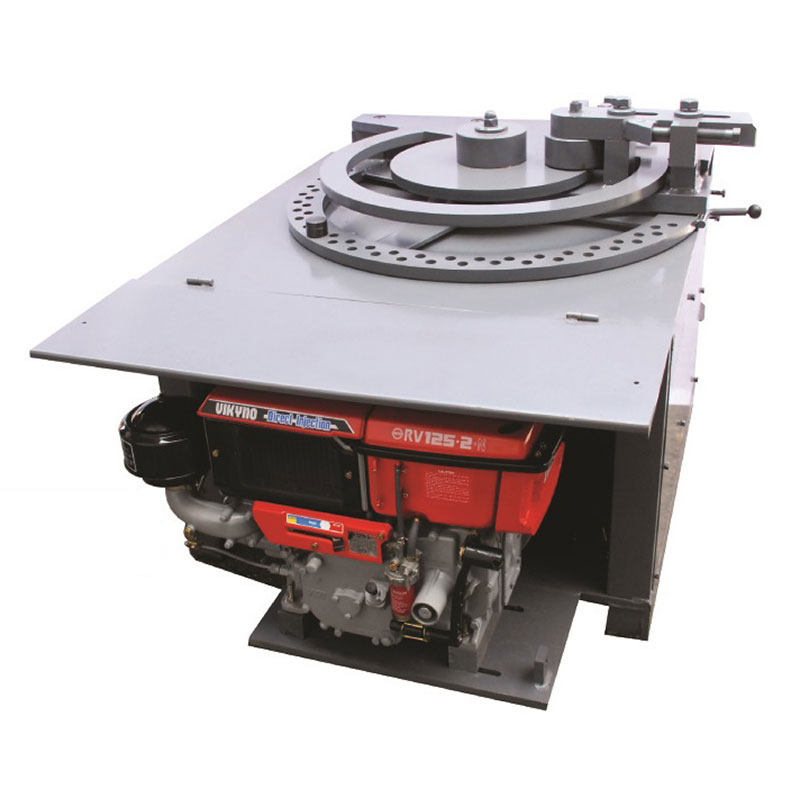

FBB42 C/W RV125

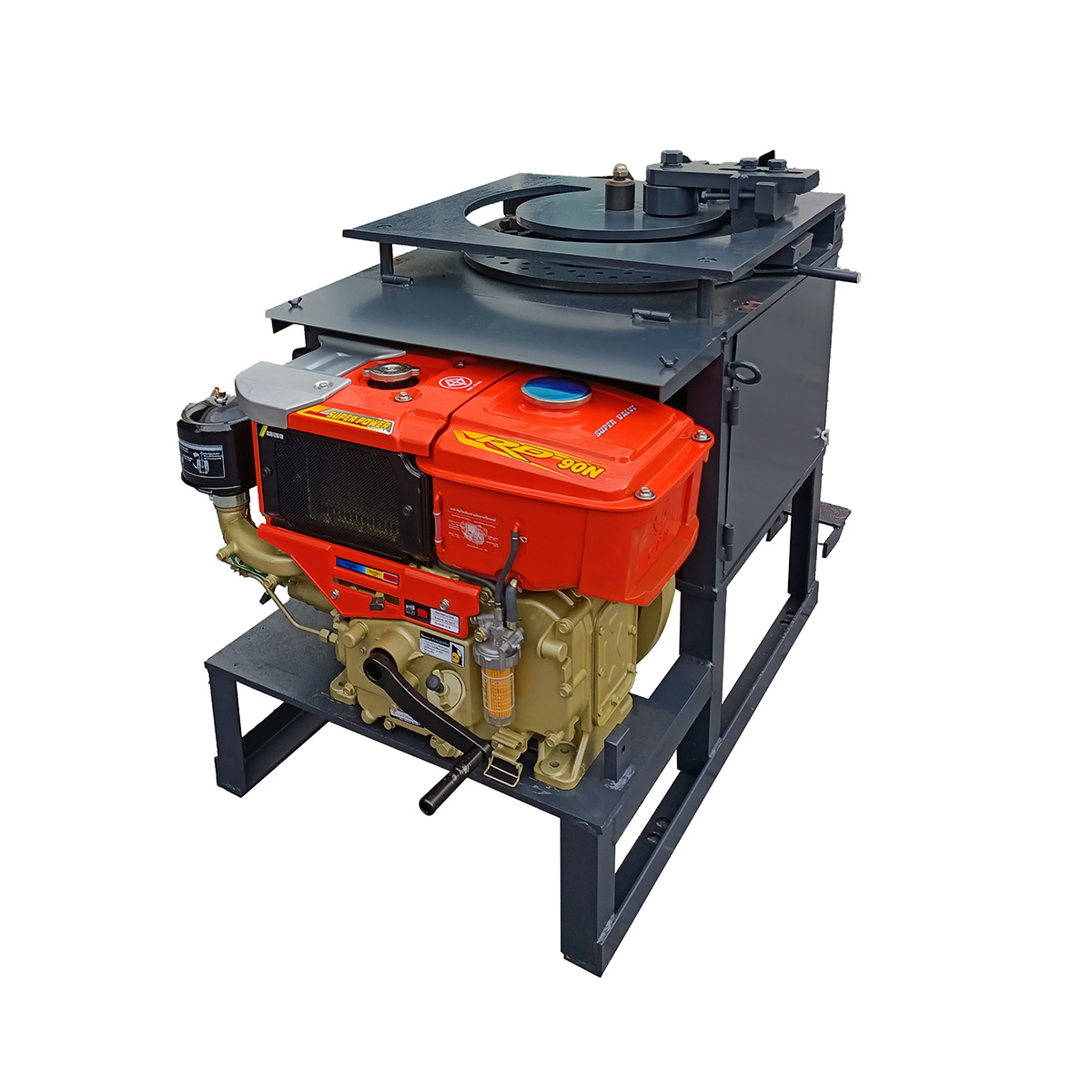

FRB19 C/W RV70
HomeEngineeringLight Construction Equipment FUJI® Bar Bender
Previous product
FUJI® Bar Cutter
Back to products
Next product
FUJI® Spiral Ring Bender
FUJI

FUJI® Bar Bender

Features:-

  • Compact in structure, simple operation by only feeding bar and pedaling a treadle.
  • Bending angle is always constant & accurate by use of fulcrum roller.
  • Bending of steel bar can be preset and change fro 0º to 180º.
  • Bending head of the machine can be reset gradually & automatically after steel bar is bent.
  • Option to use original Japan high performance Kubota engine.
Add to quote
This product is already in quote request list
Browse the list
Category: Light Construction Equipment
  • More Information
More Information

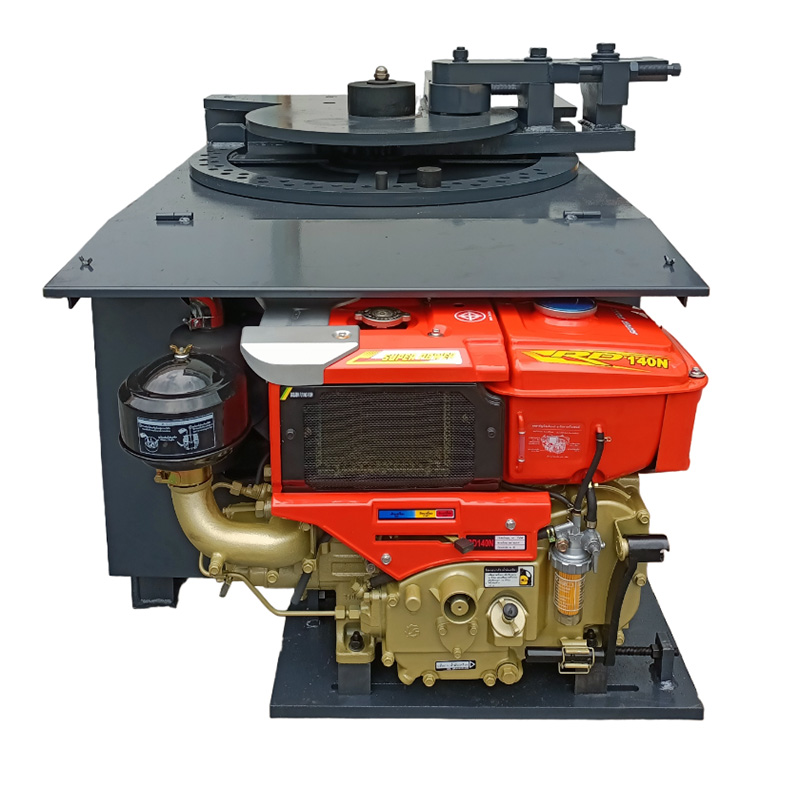

Model FBB32 FBB42 FBB50 FBB65
Max Bar Diameter (mm) 32 42 50 65
Tensile Strength of Steel Bar (N/mm) < 450
Bending Rate (rpm) 10.2 ~ 19.7 5.9 12.1 ~ 17.6
Diesel Engine (Vikyno/Kubota/Fuji) RV70 RV125 AM140 RV125 AM140 RV165
Rate Output (hp) 7.0 12.5 14.0 12.5 14.0 16.5
Engine Speed (rpm) 2400
Fuel Tank Capacity (L) 7.5 9.5 11.0 9.5 11.0 11.0
Dimension (H x W x L) (mm) 1250x1035x860 1450x1050x1000 1450x1050x1000 1450x1270x1020
Weight (kg) 765+68 950+105 950+114 950+115 950+114 1208+132

Optional:

Power (Electric Motor) 7.5hp / 415v 1500rpm 10.0hp / 415v / 1500rpm 10.0hp / 415v / 1500rpm 15.0hp / 415v / 1500rpm
Weight (kg) 765 + 66 950 + 79 1080 + 79 1208 + 122
Model FRB19
Engine Model RV70
Working Capacity (max bar dia) (mm) 20
Dimension (L x W x H) (mm) 850 x 850 x 1050
Weight (kg) 290 + 68
