Gasoline Engine | SC230RO | SC230BRO | SC230 | SC460FBO | SC460BRQ |
---|---|---|---|---|---|
Engine Type | Single Cylinder ; 4 Stroke ; Forced Cooling OHV | ||||
Starting System | Recoil start | Recoil start | RecoilE-Start | Recoil start | Recoil start |
Compression Ratio | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 |
Horse Power (HP) | 75 | 85 | 85 | 75 | 160 |
Displacement (cc) | 223 | 223 | 293 | 459 | 459 |
Max. Output (Kw/rom) | 5.0/1800 | 5.0/4800 | 5.0/3600 | 9.8/3600 | 10.5/4200 |
Max. Torque (N.m/rom) | 12.5/2800 | 12.5/2800 | 14.0/2500 | 29.0/2500 | 29.0/2800 |
Ignition Type | TCI | ||||
Fuel Consumption (100% load) (g/hp.hr) | ≤ 374 g/kw.h | ≤374 g/kw.h | 2.07 L/H | 2.75 L/H | ≤ 370 g/kw.h |
Fuel Tank Capacity (L) | 3.6 | 3.6 | 3.6 | 1.1 | 1.1 |
Oil Capacity (L) | 0.55 | 0.55 | 0.55 | 0.55 | 1.1 |
Dimension (H × W × L) (mm) | 376 x 320 x 340 | 376 x 320 x 340 | 370 x 310 x 360 | 470 x 420 x 445 | 470 x 420 x 445 |
Net Weight (kg) | 16 | 16 | 16 | 33 | 31 |

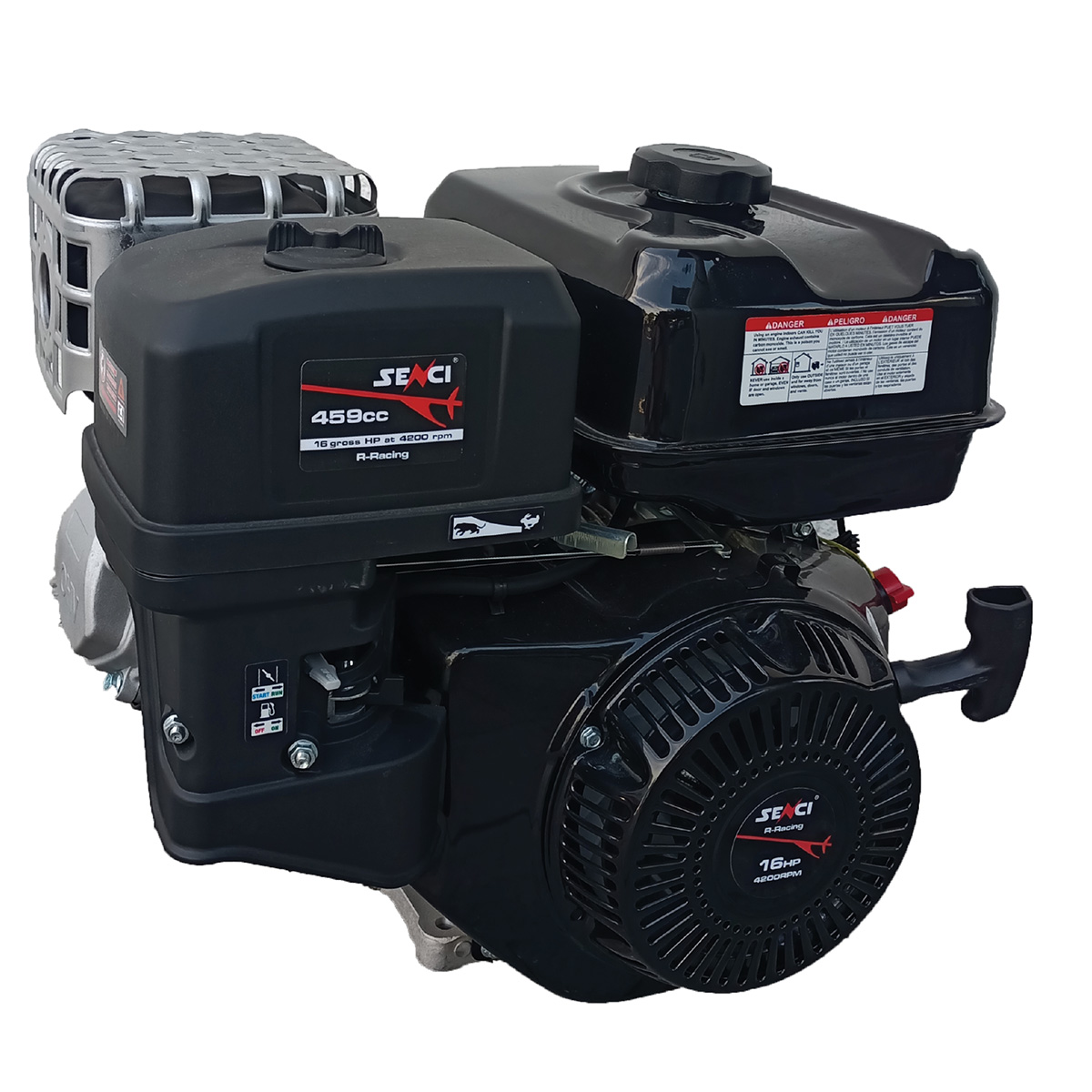

SC460BRQ

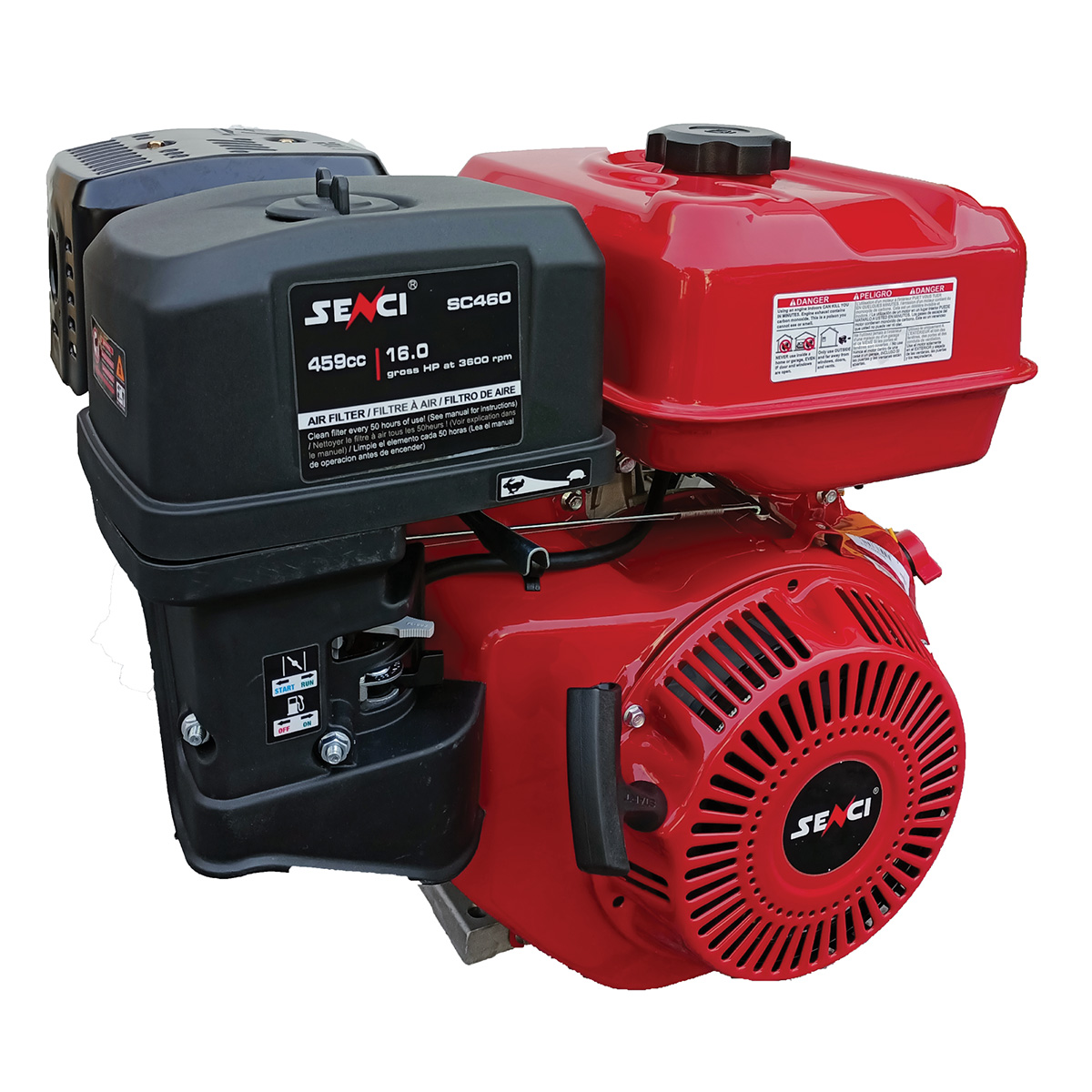

SC460FBQ

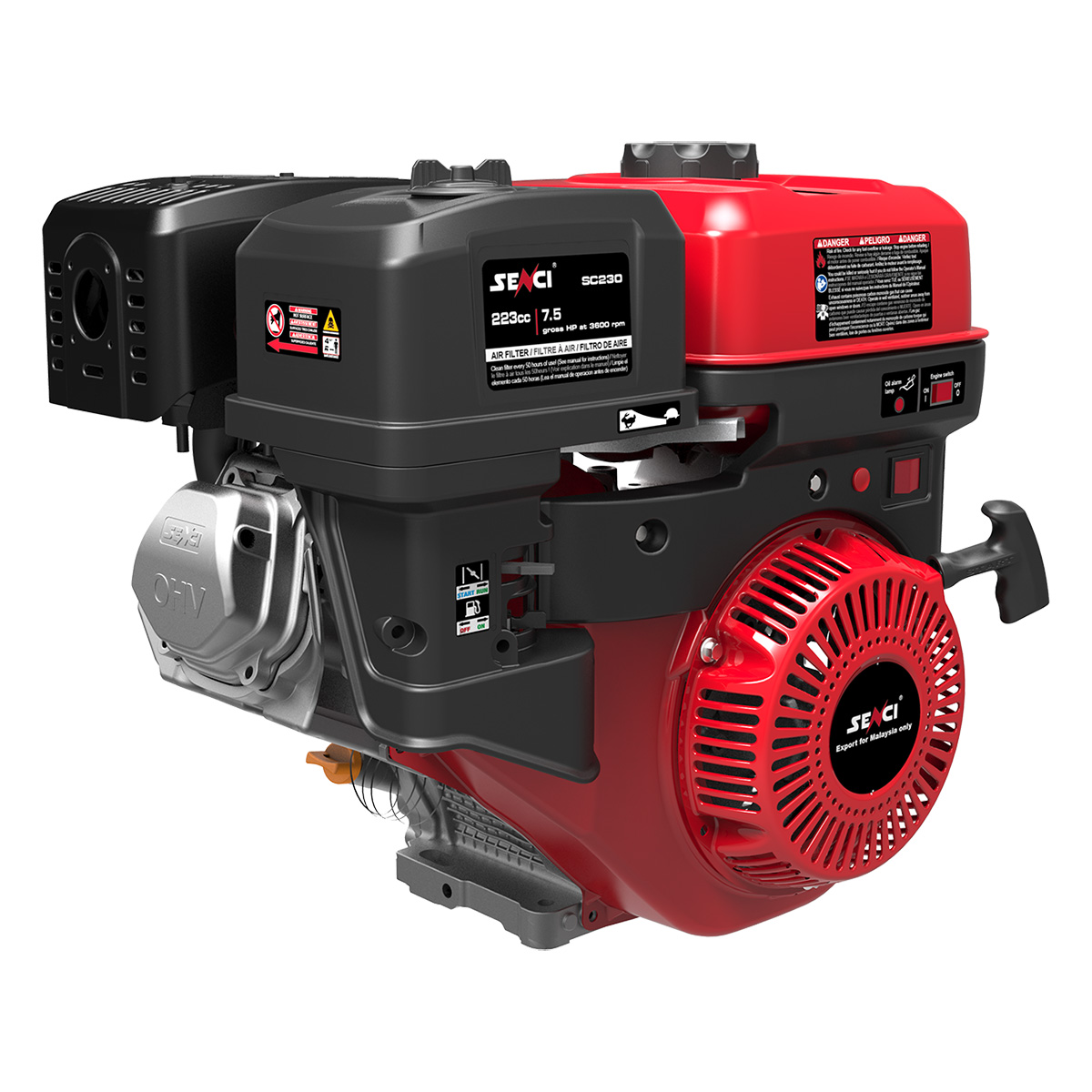

SC230

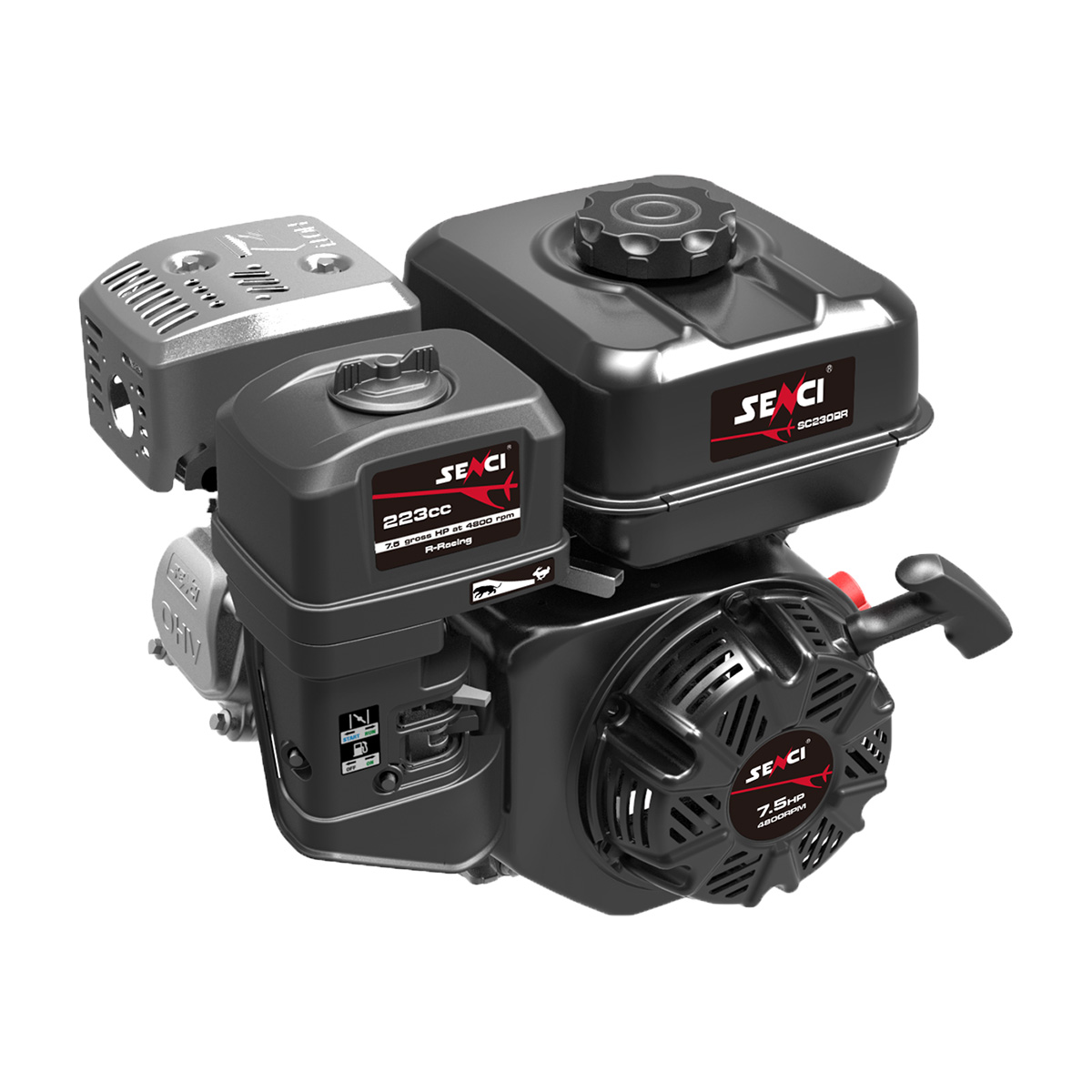

SC230BRQ

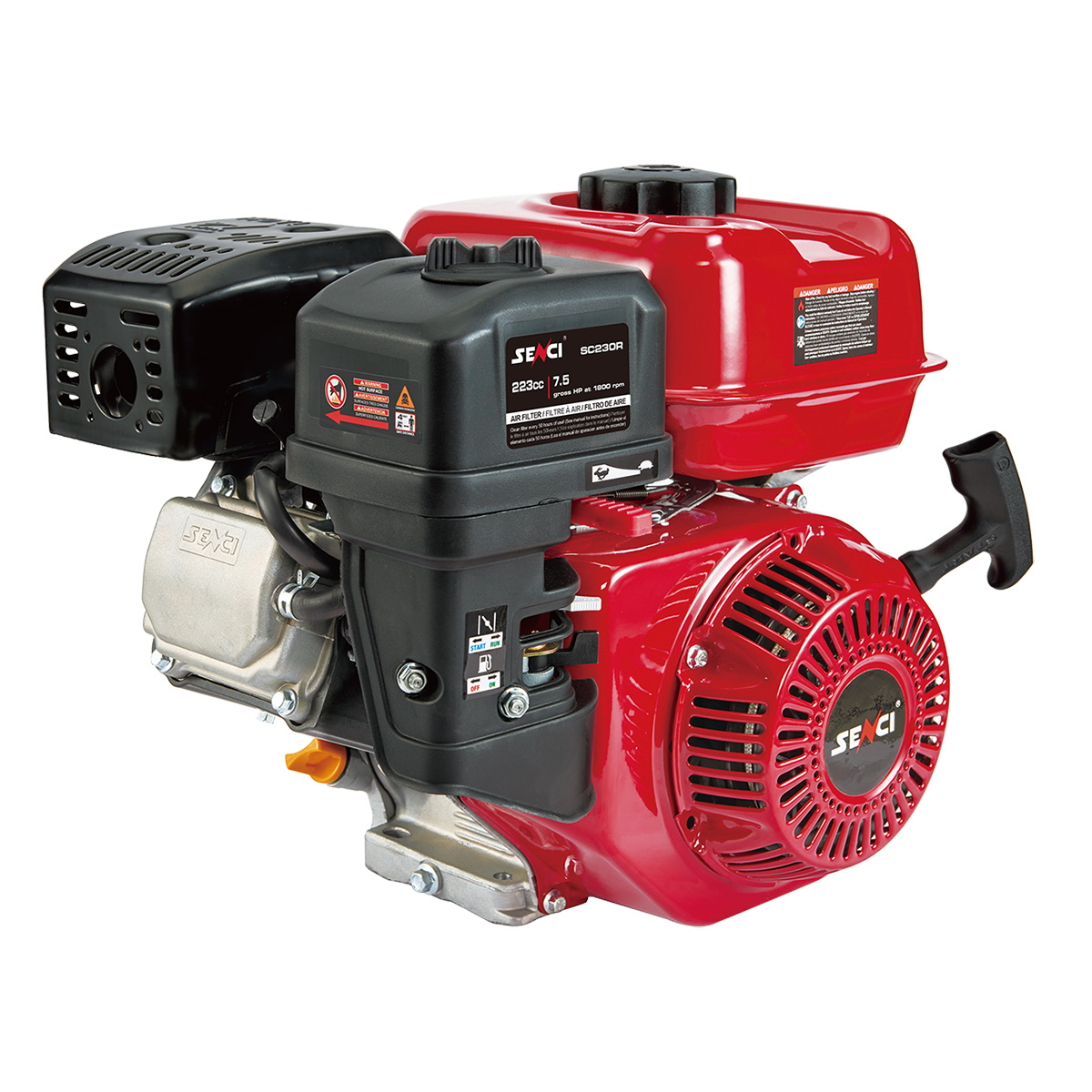

SC230RQ
