| Model | FSRB16 | FSRB20 | ||
| Max Bar Diameter (mm) | ⌀ 16 | ⌀ 19 | ||
| Main Roller Diamension (mm) | 125 | 150 | ||
| Diesel Engine | RV70 | LA178FA | L70 | RV70 |
| Rater Output (hp) | 7 | 6 | 6 | 7 |
| Engine Speed (rpm) | 2400 | 3600 | 2400 | |
| Fuel Tank Capacity (L) | 7.5 | 3.5 | 3.5 | 7.5 |
| Diamension (H x W x L) (mm) | 850 x 850 x 860 | 1035 x 1040 x 820 | ||
| Weight (kg) | 188 + 68 | 188 + 33 | 188 + 57 | 365 + 68 |
| Power (Electric Motor) | 7.5 hp / 415 V / 1500 rpm | |||

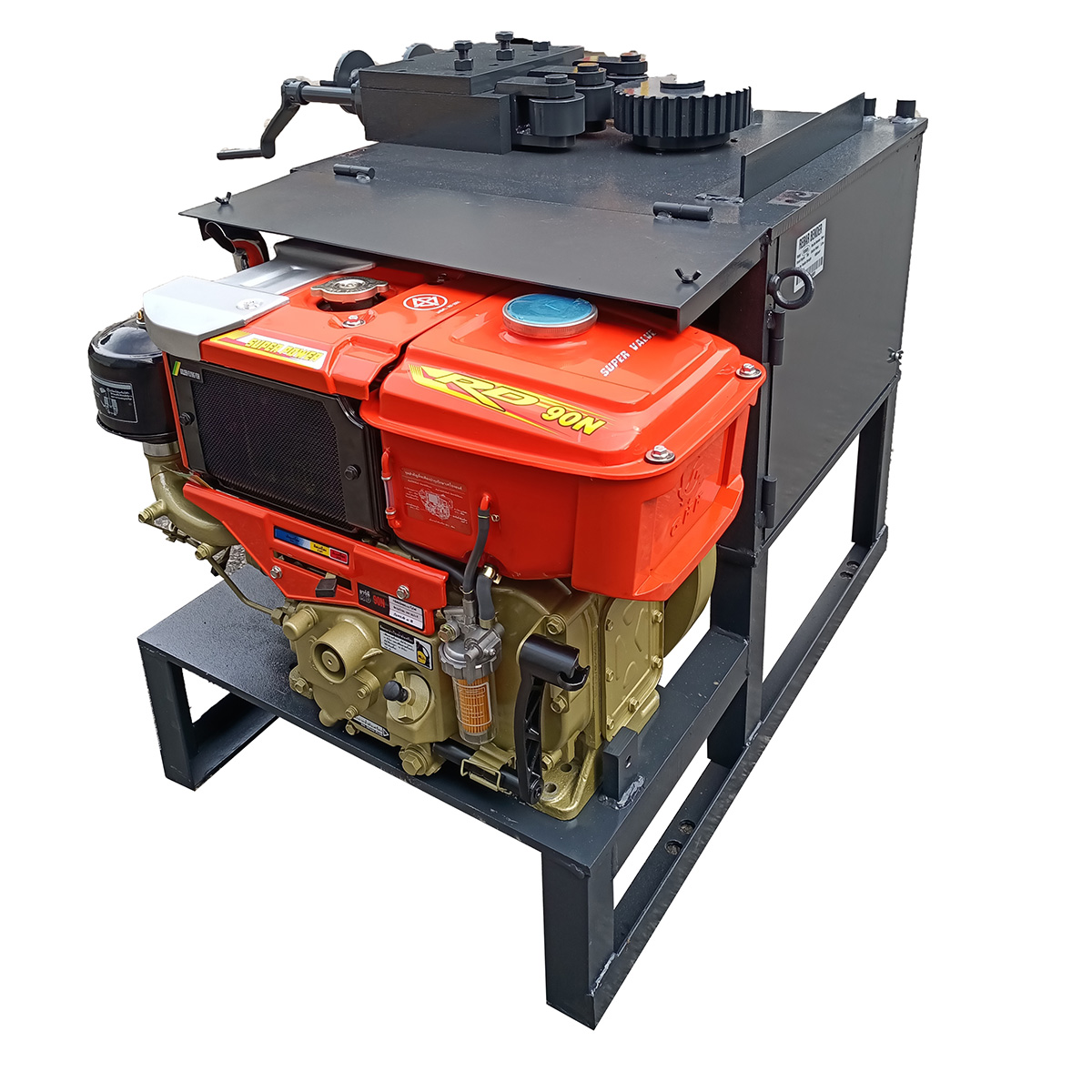

FSRB20 C.W RV70

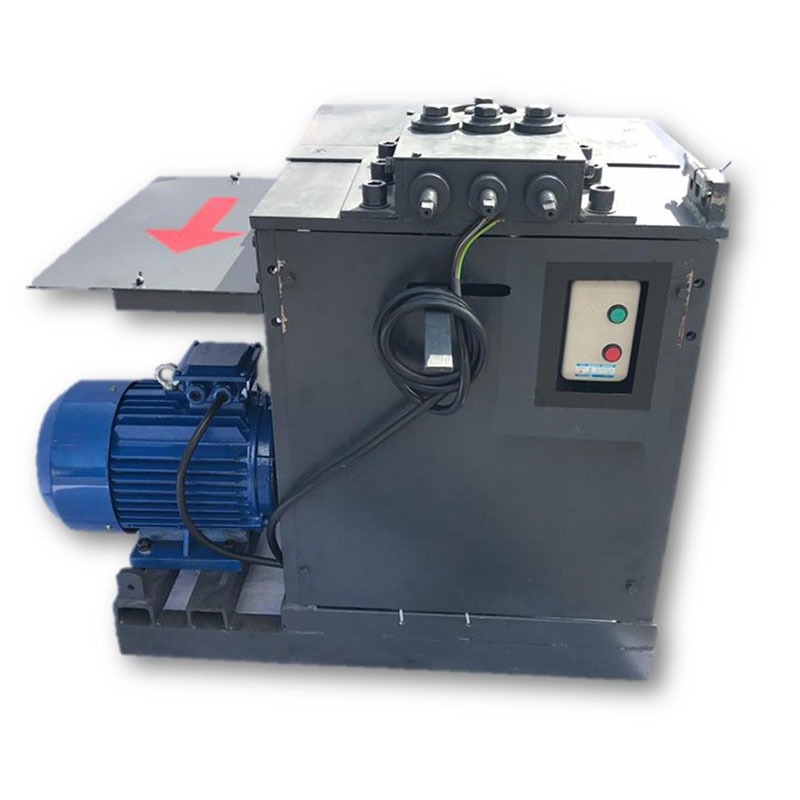

FSRB16 C.W 7.5HP MOTOR

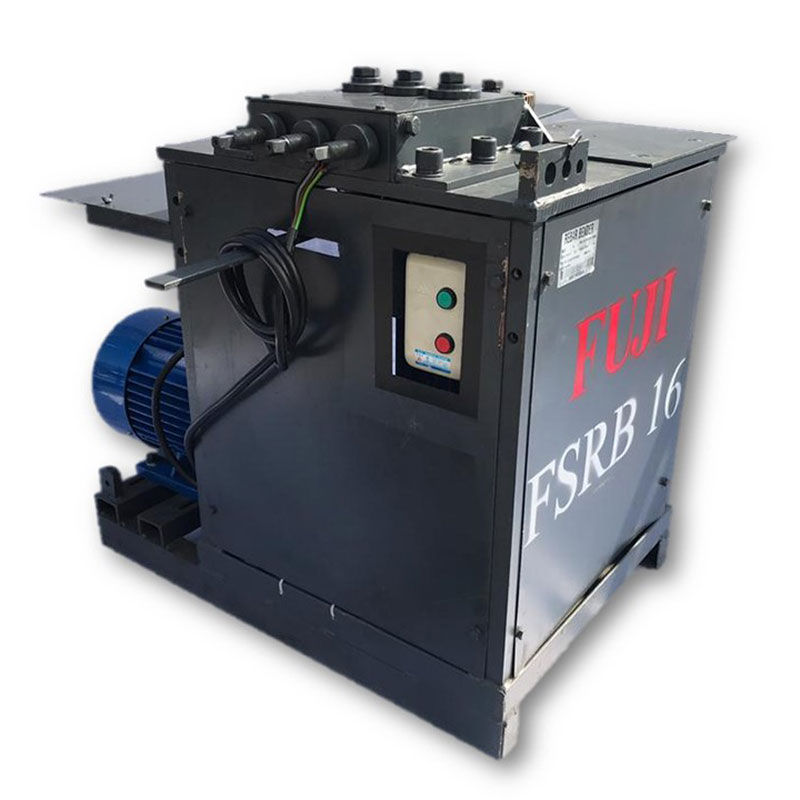

FSRB16 C.W 7.5HP MOTOR
FUJI® Spiral Ring Bender
