Twin Cylinder Diesel Generator

Well satisfy the demands of higher power, lower cost and environmental protection.
LDG15: Newly upgraded alternator has <5% harmonic distortion rate under full load.
Equipped with double large efficient mufflers & sound proof canopy with low noise level of 70dBA@, 7m.
Silent tvpe 1 phase & 3 phase – build in ATS (Auto Transfer Swith) connector.

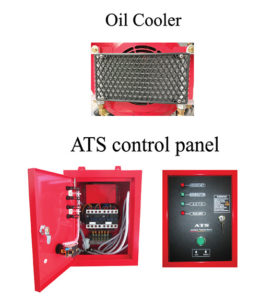

Optional AT’S control panel.

Add to quote

Category: LAUNTOP Generator

Brochure

LDG12

LDG12-3

LDG15

LDG15-3

LDG12S

LDG15S

LDG15S-3

More Information
About brand

More Information

Twin-Cylinder Diesel Generator	Oper Type				Silent Type
Model	LDG12	LDG12-3	LDG15	LDG15-3	LDG12S	LDG15S	LDG15S-3
Voltage (V)	240	240/415	240	240/415	240	240	240/415
Frequency (Hz)	50
Rate & Max AC Output (kw)	10/11	12.5/13.75	12/13	12/13	10/11	12/13	12/13
DC output (V)	12
Engine Model	LA290		LA292		LA290	LA292
Starting System	Electric
Fuel Consumption (g/kW h)	≤ 350		≤ 310		≤ 350	≤ 310	≤ 310
Displacement (cc)	954					1064
Engine Speed (rpm)	3000 / 3600		3000		3000/3600	3000
Oil Capacity (L)	3
Fuel Tank Capacity (L)	25				50	35
Dimension (L x W x H) (mm)	910x578x800				1160x675x945	1120x725x860
Noise Level at 7M dB (A)	< 82				< 70	≤ 74
Net Weight (electric) (kg)	190				295	260

About brand

Soga SpA, Italy is a world-wide well-known manufacturer of synchronous alternators under the brand Sincro. Sincro has close collaborations with the main international gen-sets manufacturers.

CONWELD is the main partner of Sincro in Malaysia.
